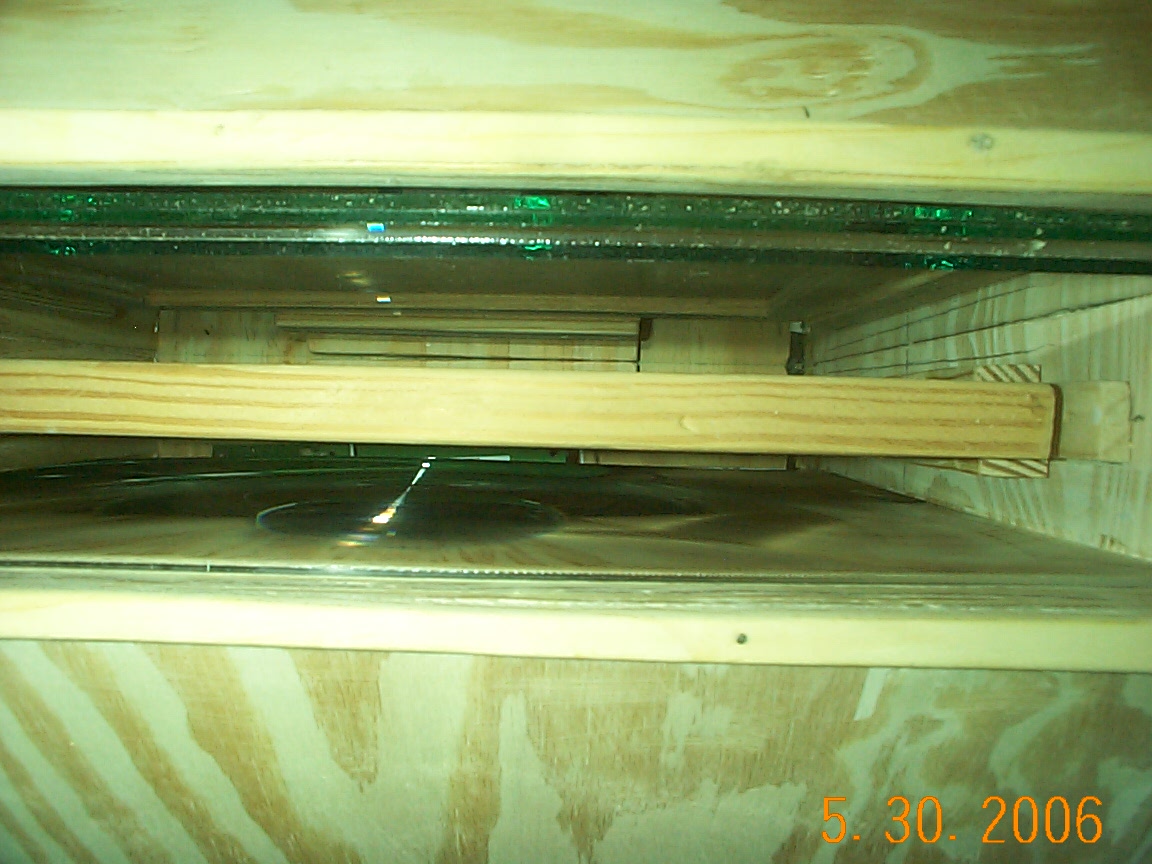

This is a picture of the finished projector from the top with the top access panel removed. From back to front (top to bottom on in the picture) the 1/4" thick sheet of IR glass, a 1/8" thick sheet of Fresnel lens, the 1/8" thick sheet of UV glass, the LCD panel, and another 1/8" thick sheet of Fresnel lens.
